奉节·东部石油加油站

我们改变了传统加油站仅仅满足功能性的布局方式,将大量的公共空间和景观视野还给城市,在功能用房和滨河景观带之间留出足够的缓冲空间形成富有弹性的生态界面。同时将功能空间整合叠加,置于富有诗意的流线型膜结构之下,成为诗城绝无仅有的功能性地标

We have changed the traditional layout of gas stations that only meet the functional requirements. We have returned a large number of public spaces and landscape views to the city, leaving enough buffer space between the functional buildings and the riverside landscape belt to form a flexible ecological interface. At the same time, the functional space is integrated and superimposed under the poetic streamline membrane structure, which becomes the unique functional landmark of the poetry city.


长江之心 匠心之作



01

 长江三峡的起点城市


▽ 项目所在地区 Project area

长江之心 匠心之作


“白帝城中云出门,白帝城下雨翻盆。高江急峡雷霆斗,翠木苍藤日月昏。”团团乌云涌出白帝城门,白帝城下立刻暴雨倾盆。高涨的江水和陡峭的峡口似雷霆般相斗,古木苍藤遮蔽群山,天昏地暗。这正是杜甫对此地的真实描述,江水与峡口铸成这一蜿蜒岸堤。中领设计为此不凡之地设计了独标的加油站。

Black clouds poured out of the gate of Baidi, and the rainstorm immediately poured down the city. The rising river and the steep fjords are fighting like thunder. The mountains are covered by the ancient trees and the earth is dark. This is Du Fu's true description of this place. The river and the gorge have made this winding bank. Zhongling Design Institute has designed a unique gas station for this extraordinary place.


▽ 奉节地理位置 Fengjie's geographical location

长江之心 匠心之作




02

 项目理解


奉节城依江而建,拥有长达15公里的江岸,整个城市以夔门广场为中心,向西发展新城,向东发展旅游和人文。将整个滨江区域打造成奉节最美的城市画卷。而本案正是这众多重要城市节点中的一个。

Fengjie City is built along the river and has a 15km river bank. Centering on Kuimen Square, the whole city develops new city to the west and tourism and culture to the east. The whole riverside area will be built into the most beautiful picture scroll of fengjie City. And this case is one of those important urban nodes.


▽ 城市节点未来发展 Future development of urban nodes
长江之心 匠心之作


▽ 基地周边现状 Current situation around the base
长江之心 匠心之作

诗城路沿滨江贯通后将目标地块切分成两个部分。靠居民楼一侧通过拆除原有加油站并且平整场地使其与滨江路无障碍衔接,成为瞩目的功能性地块。

After the diversion of Shicheng road, the target land is divided into two parts, which are connected with Binjiang road barrier-free by removing the original gas stationand leveling the site on the side of the residential building.




03

 概念设计方案



长江之心 匠心之作

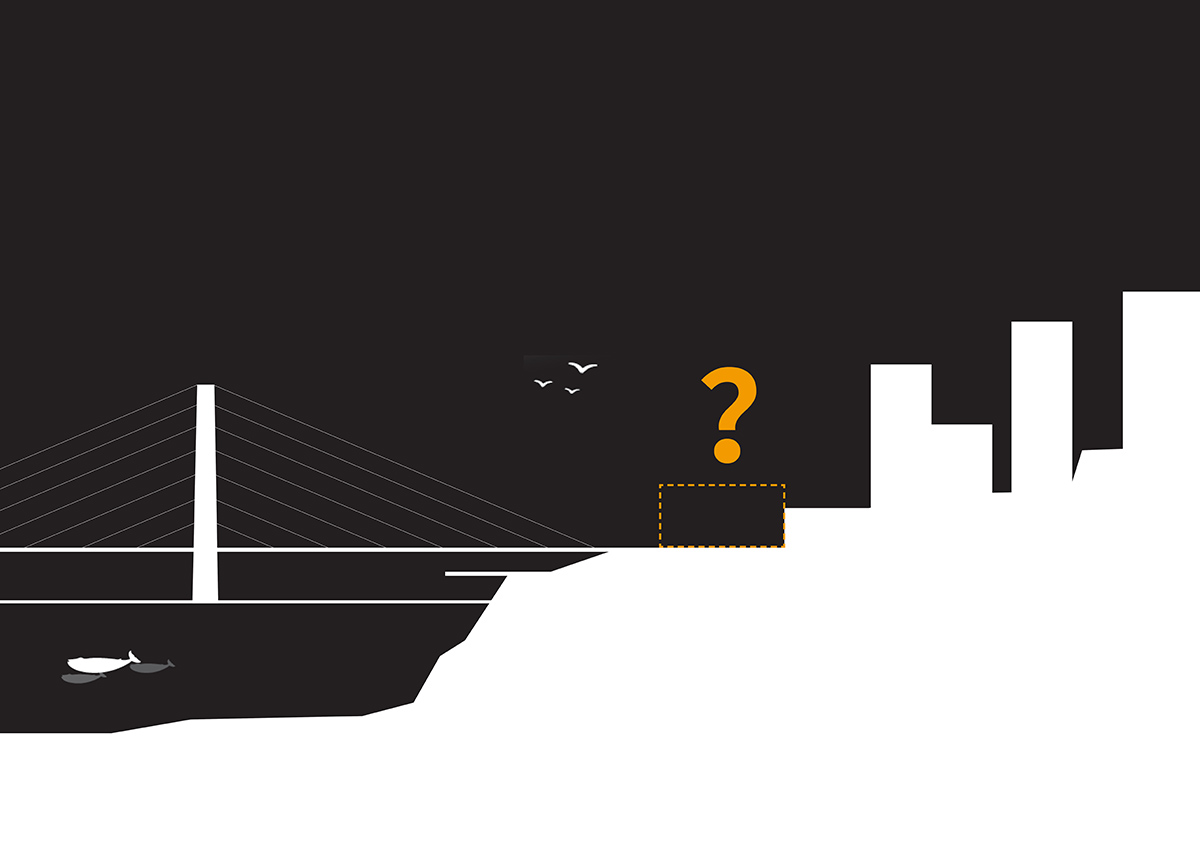

在这样一块得天独厚的场地上我们需要一个什么样的建筑呢?

What kind of architecture do we need on such a unique site?


A.场地南接滨江路拥有开阔的景观资源,其正面面向宽约1000m 的江面,视野辽阔。场地紧邻著名的夔门大桥,同时滨江路将直通白帝城,这个建筑将肩负重要的形象展示作用,成为奉节的旅游名片。

A. Site Binjiang road in the south is the open landscape resources,its positive geared to the needs of about 1000m wide river. Adjacent to the famous KuiMen bridge, the vast field Binjiang road will lead to treasure at the same time, the building will take important role in image display, become Fengjie tourism business card.

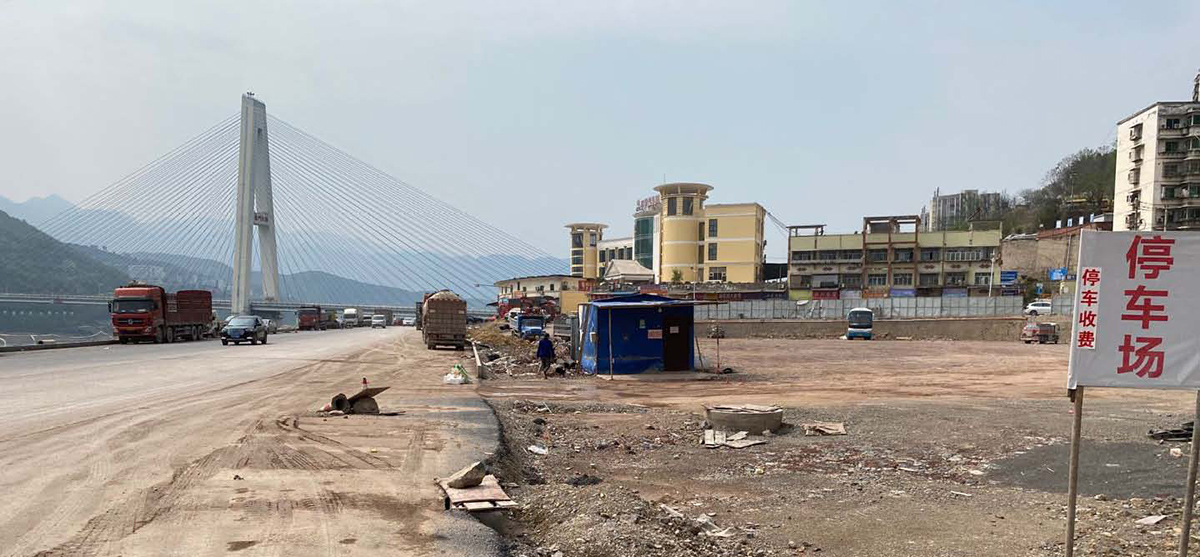

▽ 调研现场 Research site

长江之心 匠心之作


B. 场地北侧为居民区,现状街道拥挤狭窄,居民配套服务不齐全。且诗城路与新的滨江大道存在较大的高差,居民难以便捷到达临江地带。因此这个建筑又要肩负社区服务和交通的功能。

B. Venue for residential area, north of the status quo crowded,narrow streets, residents of supporting service is not completeand poetry road and Binjiang avenue is put in bigger difference. New residents convenient to reach the river area so the building and have the function of the community service and transportation.

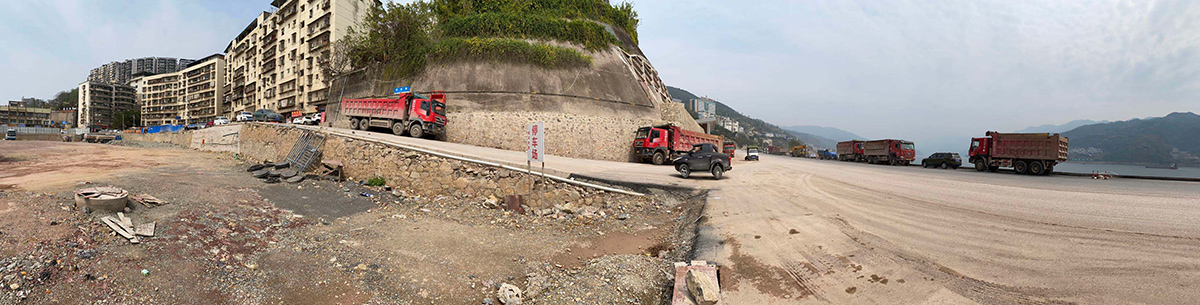

▽ 调研现场 Research site

长江之心 匠心之作


建筑由车行交通流线、人行流线、景观流线、场地周边环境进行结合而演变成另外一种曲面的人性化设计,去结合和引导服务人群。

The building combines the traffic streamline, pedestrian streamline, landscape streamline and the surrounding environment of the site into another kind of humanized design of curved surface to combine and guide the service crowd.

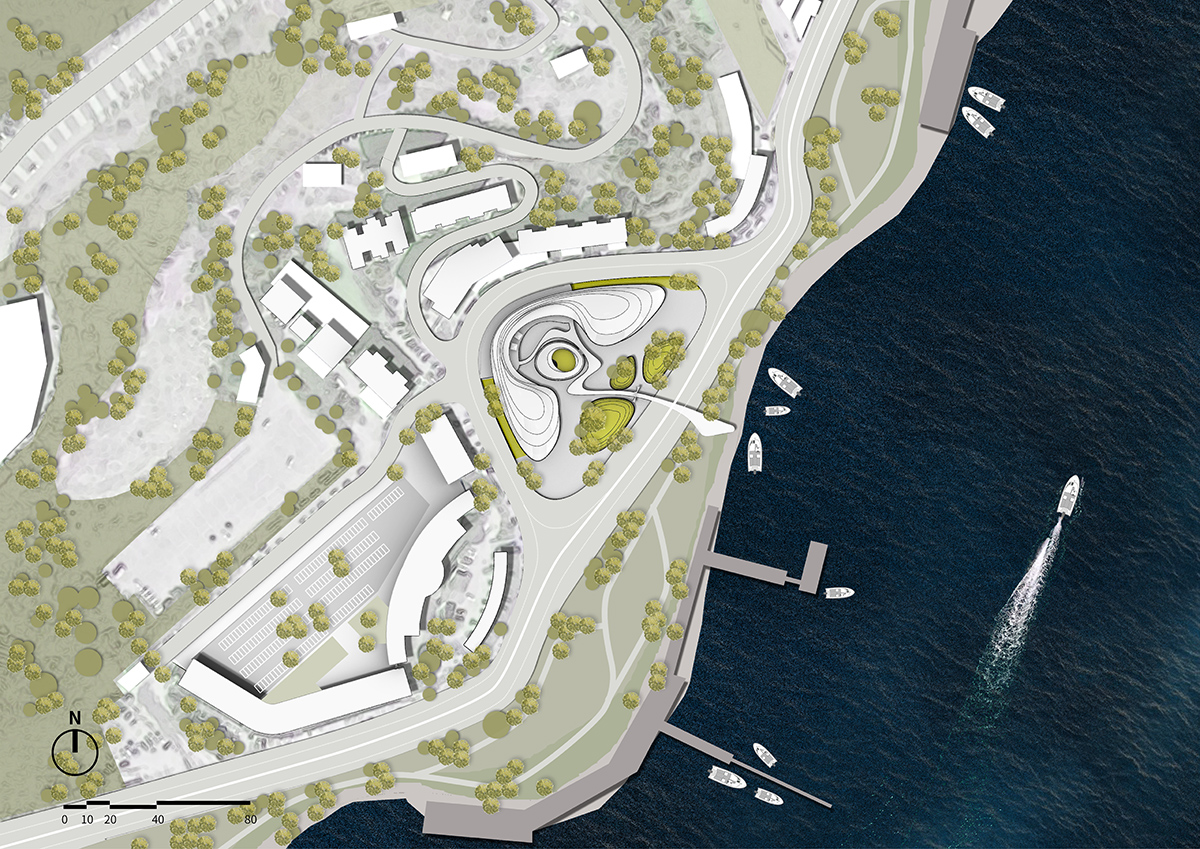

 项目总平面图 General layout of the project

长江之心 匠心之作


建筑面积约2594 ㎡,分两层。一层主要为汽车加油服务和综合服务,功能用房1060 ㎡。一层设置5 台加油机,分为两个区域,其中两部分中间连接车道设置自动洗车服务。场地中间是综合服务用房,包括办公、商业、和展示功能。二层为旅游服务功能同时兼具社区服务功能。布置有咖啡、餐厅、会议等功能,并设置一条通往江岸的景观天桥。

The building area is about 2594 square meters, divided into two floors. The first floor is mainly used for automobile refueling service and comprehensive service. The functional room is 1060 ㎡. The first floor is equipped with 5 tankers, divided into two areas, two of which are connected to the middle lane to set up automatic car washing service. In the middle of the site is a comprehensive service room, including office, commercial, and display functions. The second floor has tourism service function and community service function. There are coffee, restaurant, conference and other functions, and set up a landscape bridge to the river bank.

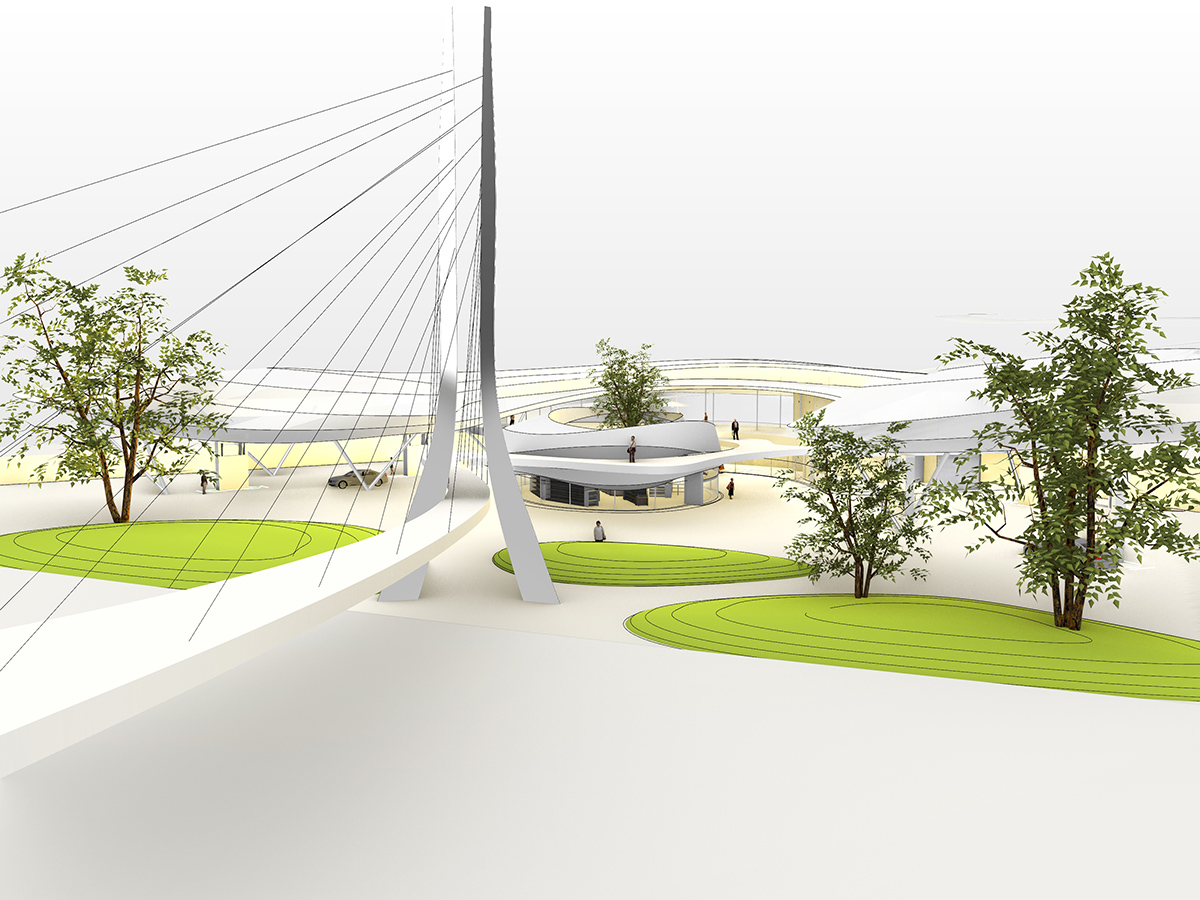

 如诗般流动的线条 Lines that flow like poetry

长江之心 匠心之作

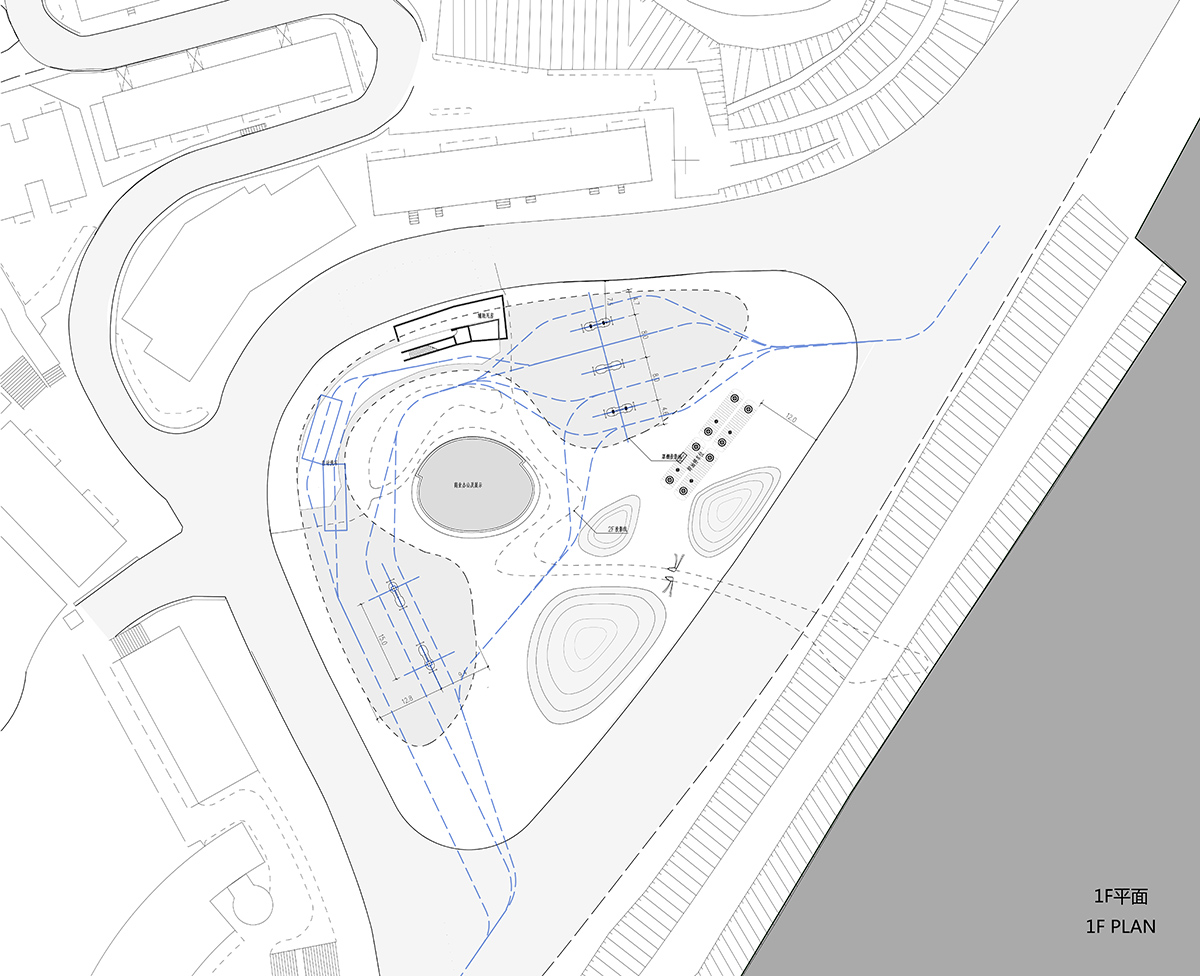

 1F平面图 First floor plan

长江之心 匠心之作

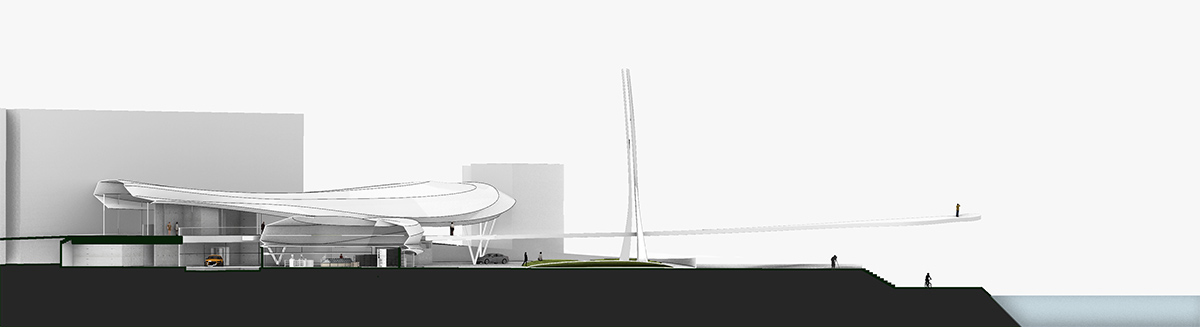

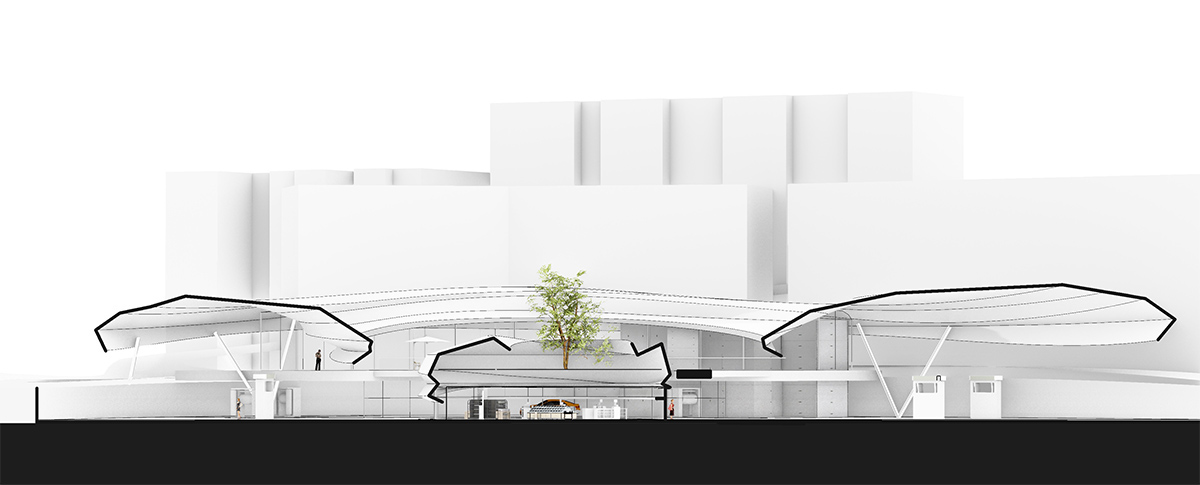

 东西剖面图 East-west profile

长江之心 匠心之作


 南北剖面图 North-south profile

长江之心 匠心之作

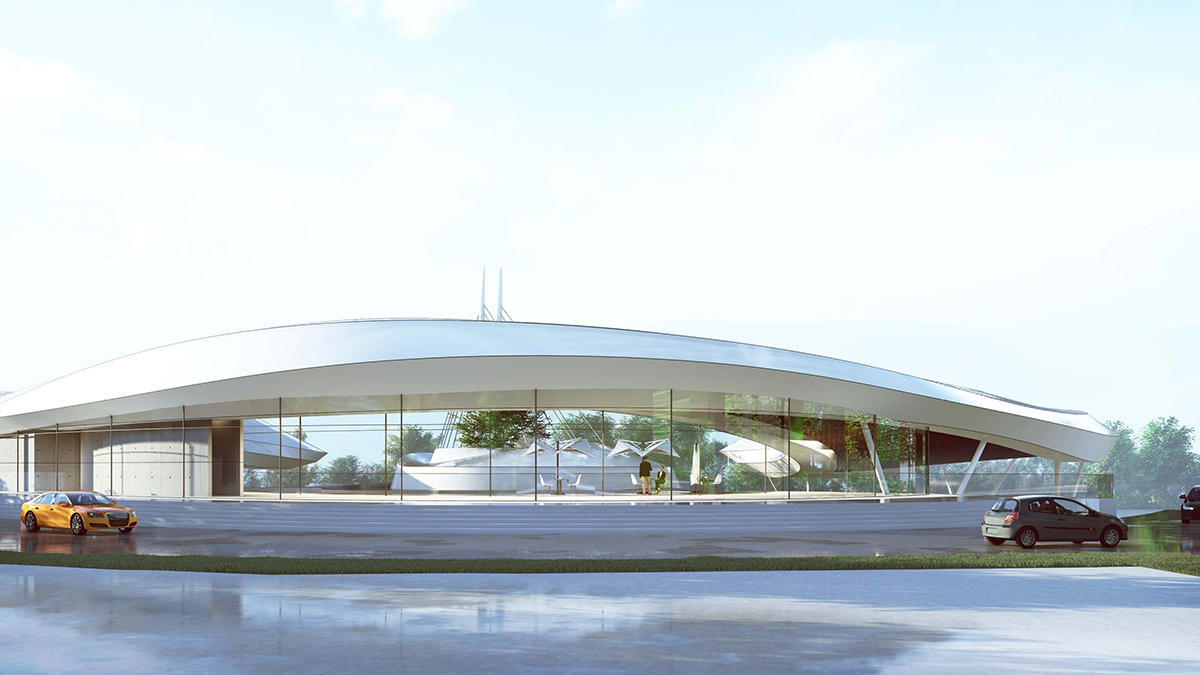

 北立面概念效果 Elevation concept effect

长江之心 匠心之作

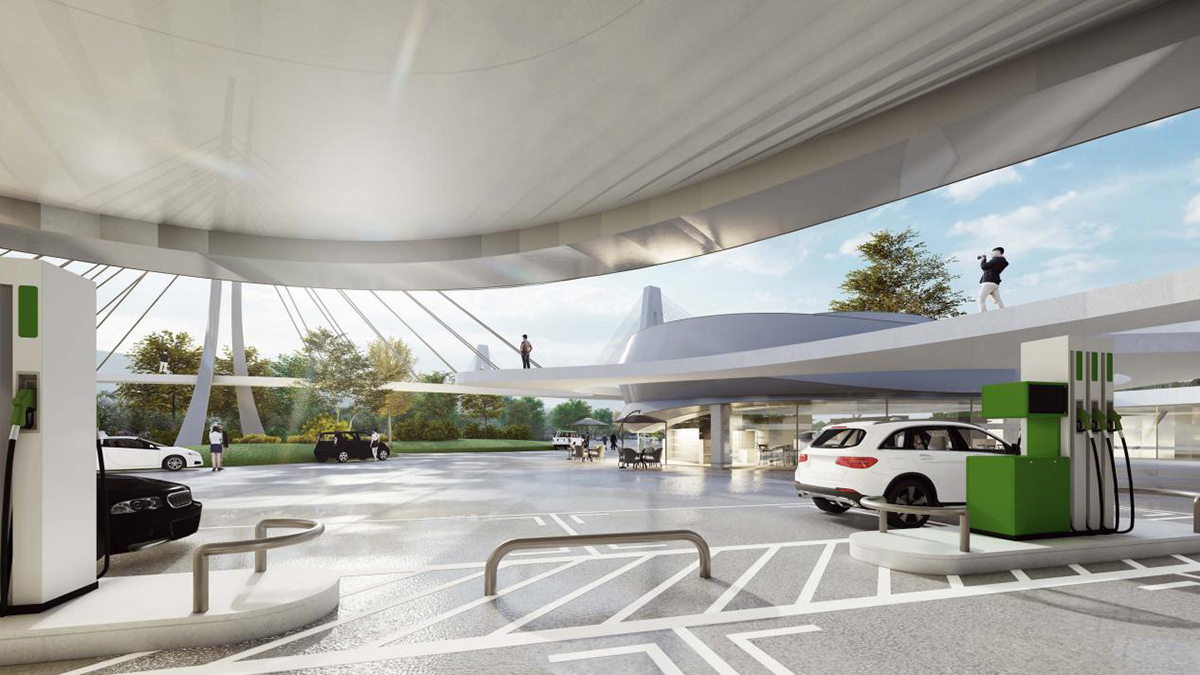

 加油站一层概念效果 Gas station first floor concept effect

长江之心 匠心之作

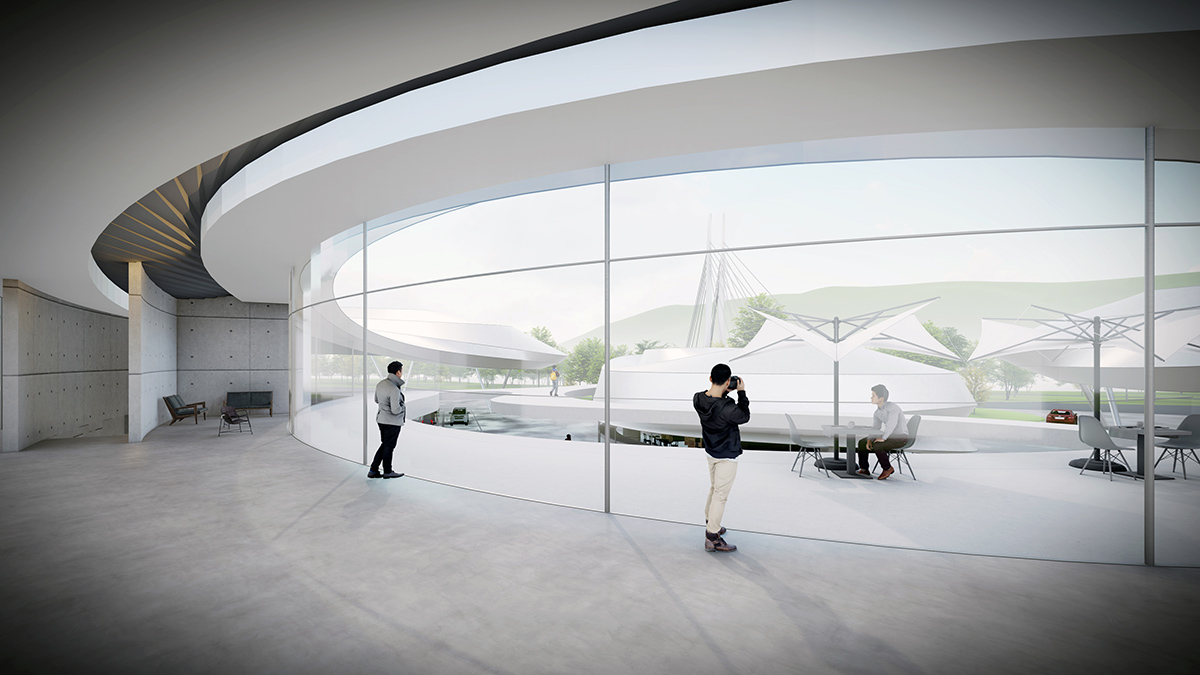

 二层室内概念效果 Second floor interior concept effect

长江之心 匠心之作

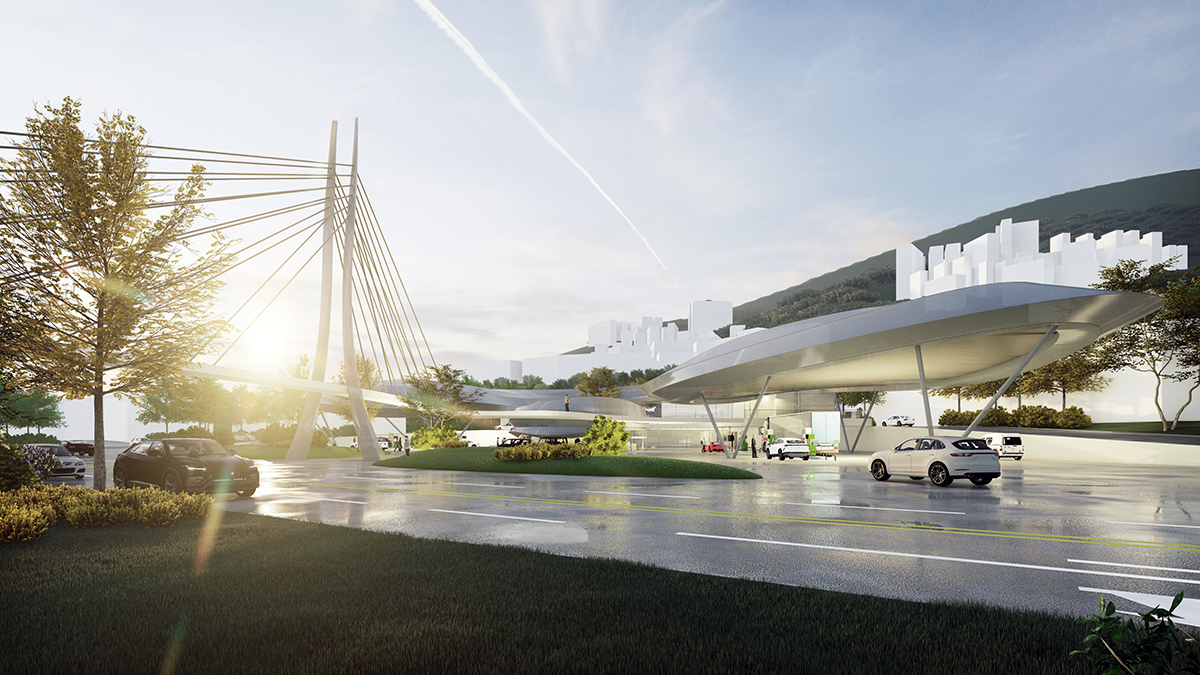

 南立面概念效果 South facade concept effect

长江之心 匠心之作

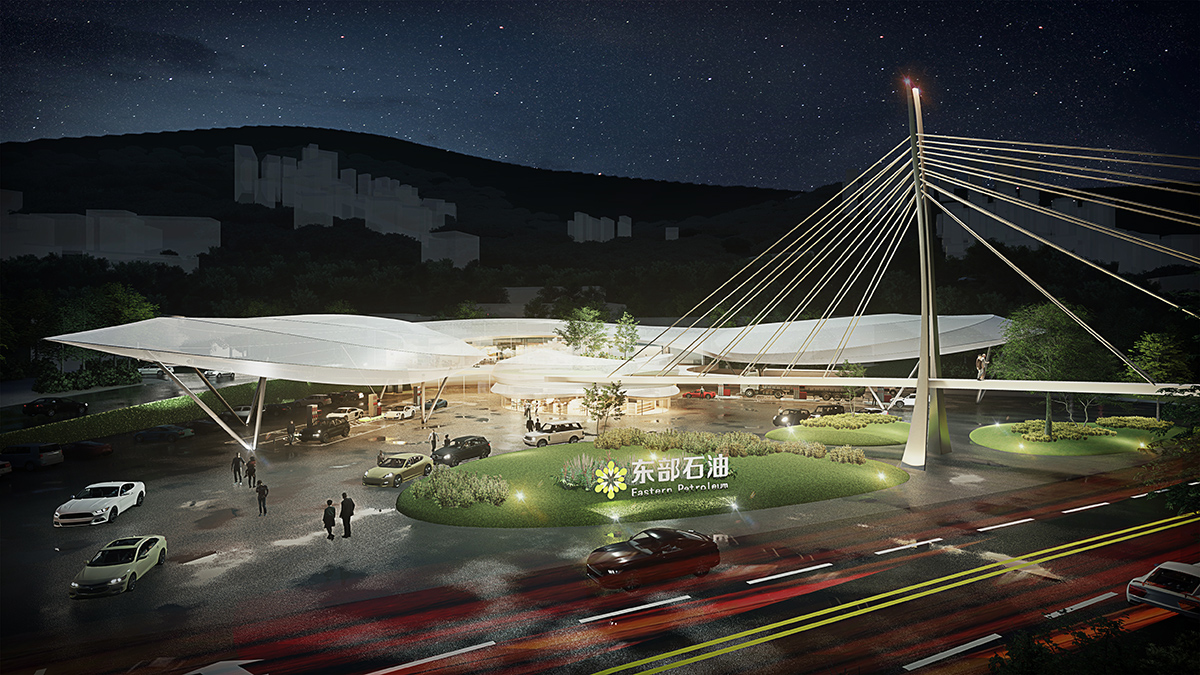

 鸟瞰夜景概念效果 Bird 's-eye view of the night concept effect

长江之心 匠心之作



项目名称:奉节熊家包加油站

项目位置:重庆市奉节县

设计公司:重庆中领设计研究院有限公司

主持建筑师/项目主创:杨贤  向芯瑶

设计团队:杨洋 马煦凯 左镇 周瑶

建筑面积:2594 ㎡

设计时间:2020年3月

业主:重庆东部石油销售有限公司

材料:膜材、钢材、清水混凝土




Project name: Fengjie Xiongjiabao Gas Station

Project location: Fengjie county, Chongqing

Design company: Zhongling Design

Principal Architect/project creator: Yang Xian,Xiang Xinyao

Design team:Yang Yang, Ma Xukai, Zuo Zhen, Zhou Yao

Building area: 2594 m2

Design time: March 2020

Owner: Chongqing Eastern Petroleum Sales Co., LTD

Materials: film, steel, concrete
